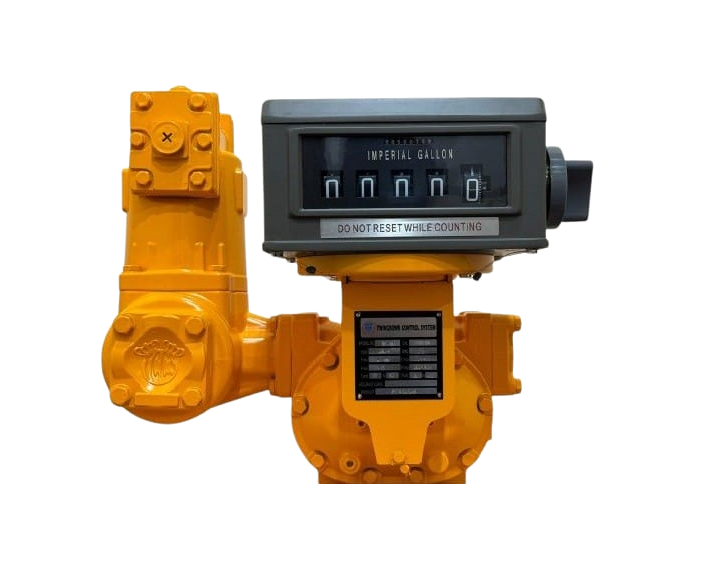

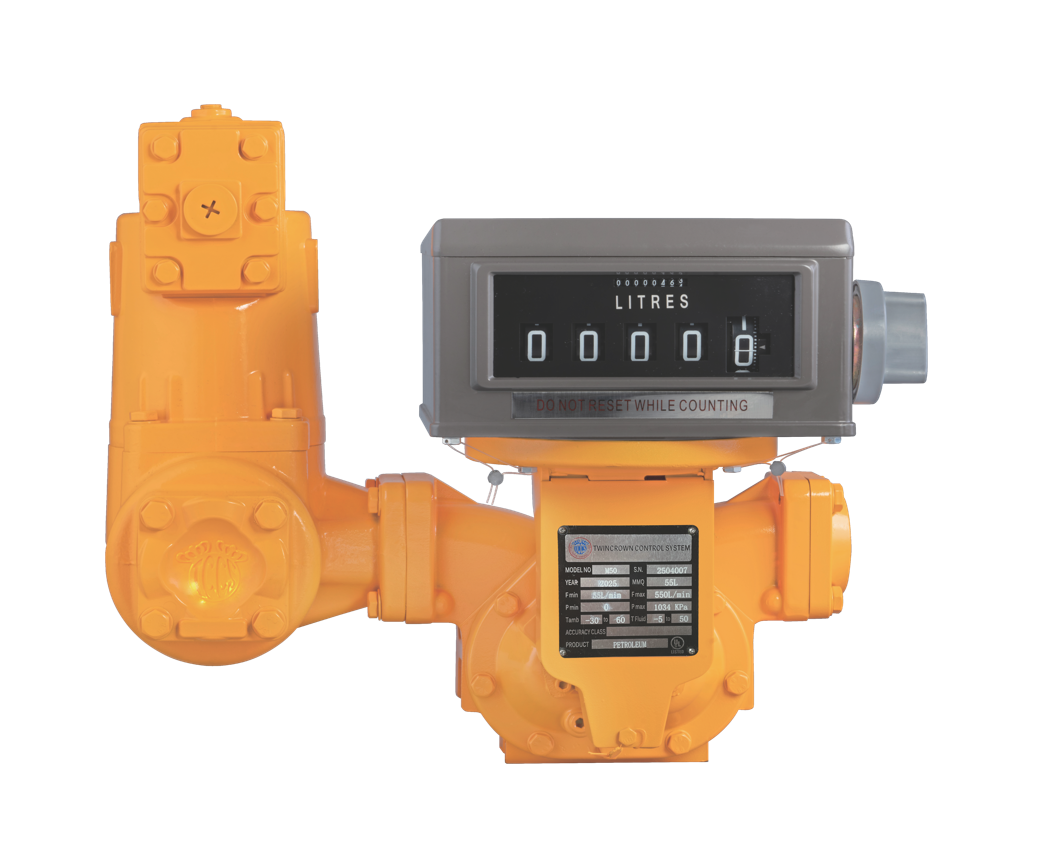

M-50 SERIES

The M Series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact inside the chamber, eliminates any deterioration in accuracy and provides a long service life. The rotors are supported by bearings inserted into two bearing plates. where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, which will then give a consistent and superior measurement of accuracy. Available Size · 1.5″ to 6″ with a low range of 60 GPM to 1000 GPM.

Specification

MODEL M-50 Series
Size 50mm/2″
Flow Range 55-550 L/min
Package Carton Box;
Dimension* C:51X46X48cm; W:53X48X51cm
Gross Weight* C:28kgs; W:38kgs
