Petroleum-120

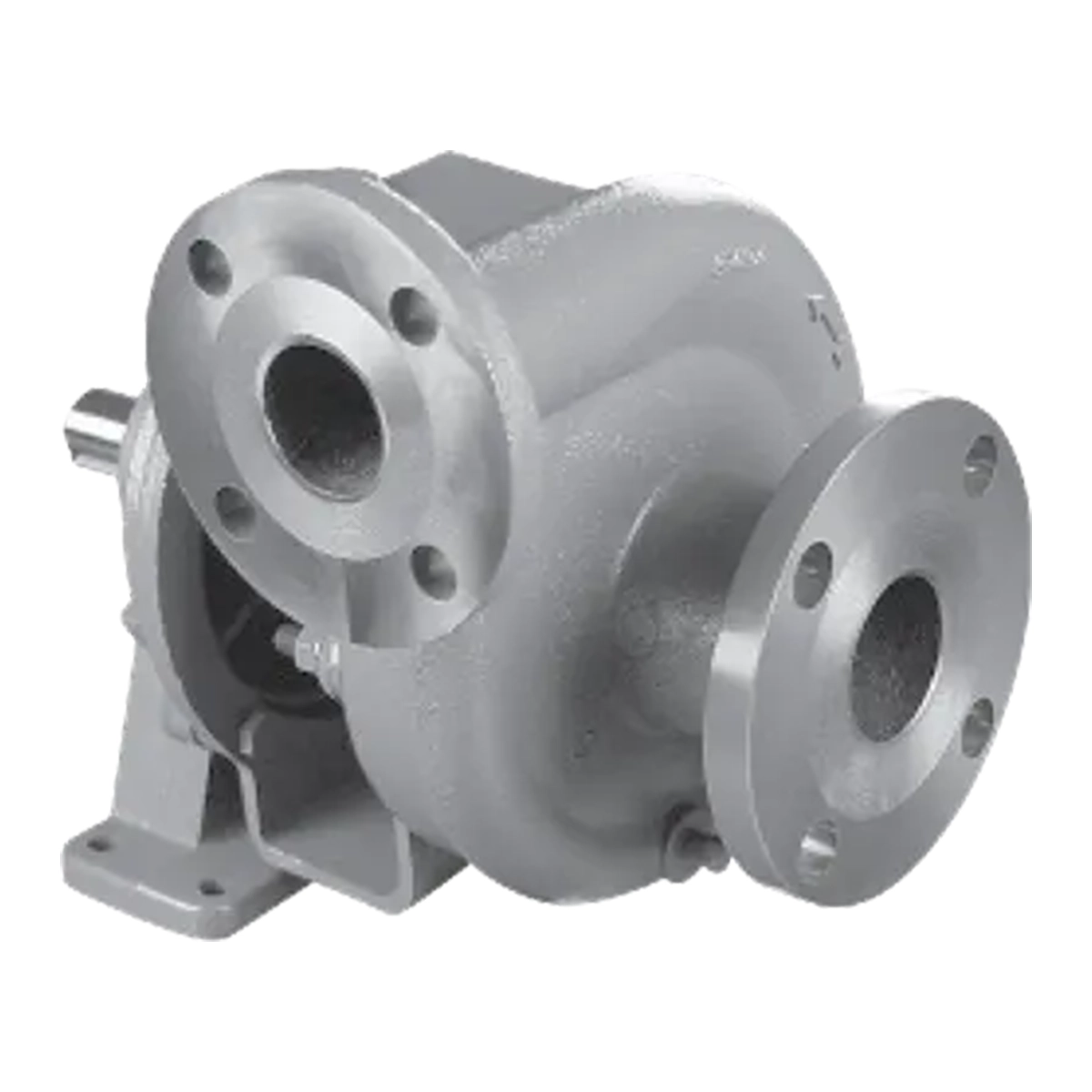

The MP Pumps Petroleum 120 is a 2″ x 1½” end‑suction centrifugal pump designed for reliable transfer of petroleum‑based liquids. Built for compatibility with 184TC frame electric motors and multiple mounting configurations, the series delivers consistent performance across a wide range of applications. With three dedicated variants – SE 120, SG 120, and SO 120 – the Petroleum 120 pump ensures material and seal compatibility with ethanol, gasoline, jet fuel, biodiesel, diesel, and more.

Description

SUCTION AND DISCHARGE 2″ x 1-1/2″ 150# flange
APPLICATION Agricultural, Industrial, Marine, OEM
FLOW Up to 200 GPM
HEAD FEET Up to 135′
IMPELLER SE 120 – semi open cast iron, SG 120 – semi open aluminium, SO 120 – semi open cast iron
MOTOR Up to 7 1/2 HP
DRIVE OPTIONS Close coupled 184TC, Pedestal, Pedestal, PumPAK® (without motor)
SEAL SE 120 . . carbon / silicon carbide / viton, SG 120. . carbon / silicon carbide / viton , SO 120. . carbon / ni-resist / viton
MOUNTING OPTIONS SE 120 – Explosion proof Class 1 Group D, SG 120 – Explosion proof Class 1 Group D, SO 120 – TEFC – TEFC
FEATURES Non-spark clamp
COMPATIBLE FOR SE 120 – Ethanol, E 85, SG 120 – Gasoline, Avgas, Kerosene, Jet A/8, SO 120 – Biodiesel, Fuel Oil, Diesel
